DiamondCore Tools - Shrink Ruler METRIC (Double-Sided) (SRM)

The handy Shrink Ruler from DiamondCore® Tools is a one-of-a-kind measuring device for potters to measure clay shrinkage. This flexible, two-sided plastic ruler has four clay shrinkage percentages to help with projects when an exact match is crucial, such as lids for a teapots, cookie jars, etc.

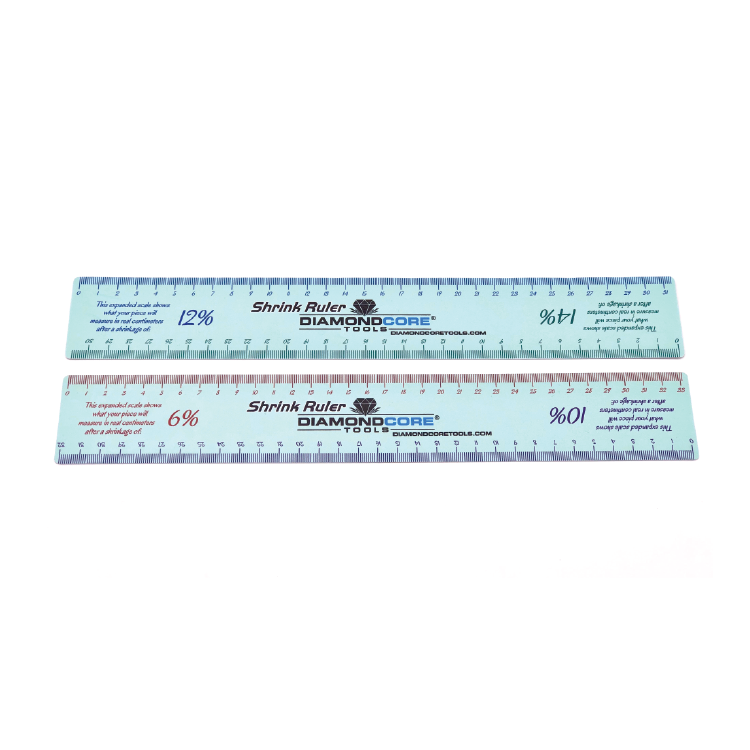

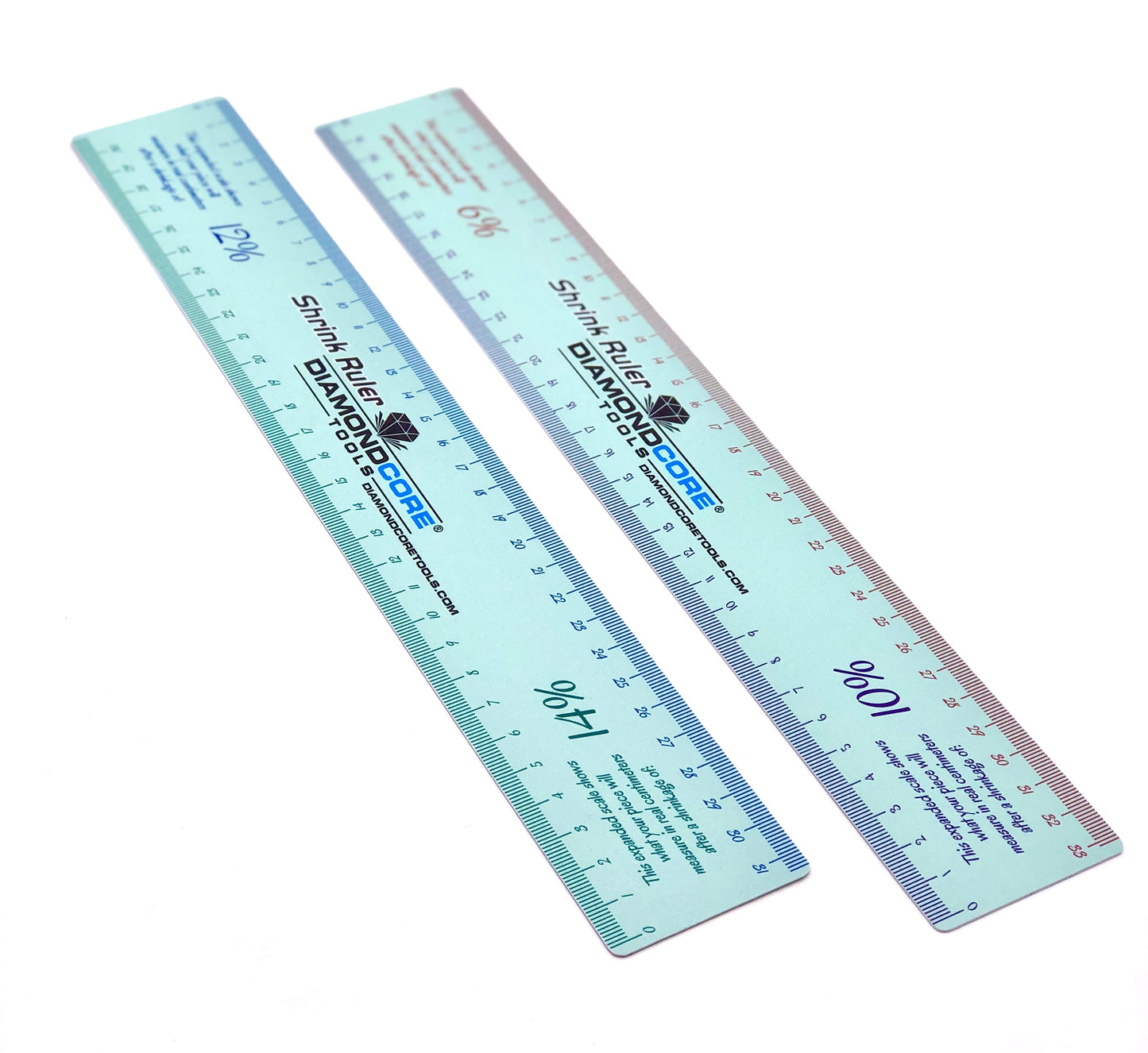

The photos show both sides of the same ruler. One side shows 6% and 10%, the other side shows 12% and 14%.

HOW TO USE YOUR SHRINK RULER

Using your Shrink Ruler is easy! Here’s a step-by-step guide example:

1. Measure the dimension of the finished piece you want using a standard inch ruler.
2. Find that measurement on the Shrink Ruler on the scale corresponding to the shrinkage of your clay.
3. Mark or form the wet clay piece to that dimension.
4. When the piece is done firing, it will have shrunk to the correct size.

HOW TO MEASURE THE SHRINKAGE RATE OF YOUR CLAY

To use the Shrink Ruler, knowing the shrinkage rate of your clay is important. Generally, the clay supplier can provide this, or you can calculate it using the formula below.

1. Make a rectangular clay slab that’s 10 cm X 30 cm and as thick as you plan to make your piece.
2. With a regular ruler, measure and carve a 25 cm line in the wet clay.
3. Let the clay dry, then bisque fire the clay slab.
4. Then fire the slab to final firing conditions.
5. Measure the length of the same line again with the regular ruler.
6. Use the below formula to solve for S.

S=(1-F/M)x100

M=length of line in original moist clay slab with regular ruler (25 cm)

F= length of line in finished clay slab (with regular ruler)

S=percentage of shrinkage
